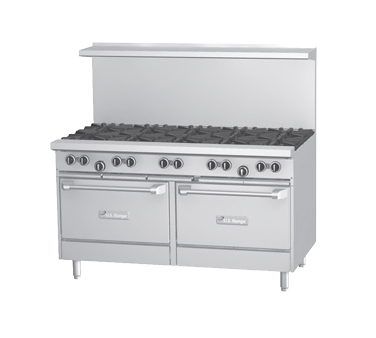

Garland U60-10RR Natural Gas 60" 10-Burner Range with 2 Standard Ovens

Original price $7,769.00 - Original price $7,769.00
Original price
$7,769.00 - $7,769.00
Current price $7,769.00

Product Description

Standard Features
• Large 27" (686mm) work top surface
• Stainless steel front and sides
• Stainless steel 5" (127mm) plate rail
• Stainless steel backguard, with removable stainless steel shelf
• 12" (305mm) section stamped drip trays w/ dimpled bottom
• 6" (152mm) adj. stainless steel legs
• Large easy-to-use control knobs
• Gas regulator
Standard on Applicable Models:
• Open storage base in lieu of oven
• Ergonomic split cast iron top ring grates
• Powerful 32,000 Btuh/ 9.37 kW 2 piece cast iron geometric open top burner
• 5/8" (15mm) thick steel griddle plate w/manual hi/lo valve control, 23" (584mm) working depth surface, Standard on right, optional on left
• 4-1/4" (108mm) wide grease trough
• 18,000 Btuh/5.27 kW cast iron "H" style griddle burner per 12"(305mm) width of griddle
• 38,000 Btuh/ 11.13 kW cast iron “H” style oven burner
• Snap action modulating oven thermostat low to 500° F
• Large oven w/porcelain ribbed bottom & door, aluminized steel top, sides and back; oven fits standard sheet pans in both directions for standard ovensNickel plated oven rack and 3-position removable oven rack guide
• Strong, keep-cool oven door handle
• Convection oven w/3 nickel plated oven racks and removable rack guides in lieu of standard oven w/ 1/3HP 120v 60 Hz single phase fan motor; change suffix RS to CS or RR to CR (1) or CC (2) convection ovens, CR or CS ovens standard on right
Options & Accessories
• Convection oven motor 240v 50/60HZ single phase
• Snap action modulating griddle control 175° to 425° F
• Hot top 12" (305mm) plate in lieu of two open burners, manual valve controlled w/18,000 Btuh/5.27 kW cast iron "H" burner standard on left side
• Low profile 9-3/8" (238mm) backguard stainless steel front and sides
• Additional oven racks
• 6” (152mm) levelling swivel casters (4), w/front locking
• Flanged deck mount legs
• Piezo spark ignition for pilots on griddles

Product Overview

U Series Restaurant Range, gas, 60", (10) 32,000 BTU open burners, with cast iron top & ring grates, (2) standard ovens with 3 position rack guides with oven rack each, stainless steel front, sides, plate rail, 2-piece back guard and shelf, 6" stainless steel legs with adjustable feet, 396,000 BTU, CSA Flame, CSA Star, cCSAus, NSF (US Range)


Height = 57" Width = 59.1" Depth = 34.5"
