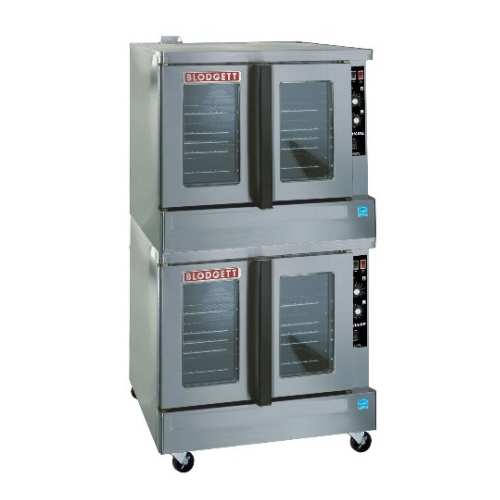

Blodgett Zephaire 100-G Natural Gas Full-Size Standard Depth Double Convection Oven

Standard depth baking compartment - accepts five 18” x 26” standard full-size baking pans in left-to-right positions

EXTERIOR CONSTRUCTION
• Full angle iron frame
• Stainless steel front, top, sides and legs
• Dual pane thermal glass windows encased in stainless steel door frames
• Powder coated door handle with simultaneous door operation
• Triple-mounted pressure lock door design with turnbuckle assembly
• Removable front control panel
• Solid mineral fiber insulation at top, back, sides and bottom

INTERIOR CONSTRUCTION
• Double-sided porcelainized baking compartment liner (14 gauge)
• Aluminized steel combustion chamber
• Dual inlet blower wheel
• Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8” (41mm) spacing

OPERATION
• Dual Flow Gas system combines direct and indirect heat
• Electronic spark ignition control system
• Removable dual tube burners
• Pressure regulator and manual gas service cut-off valve located in front control area
• Air mixers with adjustable air shutters
• Solid state thermostat with temperature control range of 200°F (93°C) to 500°F (260°C)
• Two speed fan motor
• 1/2 horsepower blower motor with automatic thermal overload protection
• Control area cooling fan
• Interior oven lights

STANDARD FEATURES
• SSI-D - solid state infinite control w/digital timer
• 25” (635mm) adjustable stainless steel legs (for single units)
• 6” (152mm) adjustable stainless steel legs (for double sections)
• Draft diverter or draft hood for venting (select one)
• Porcelainized oven liner
• Two year parts and two year labor oven warranty
• Three year limited oven door warranty
